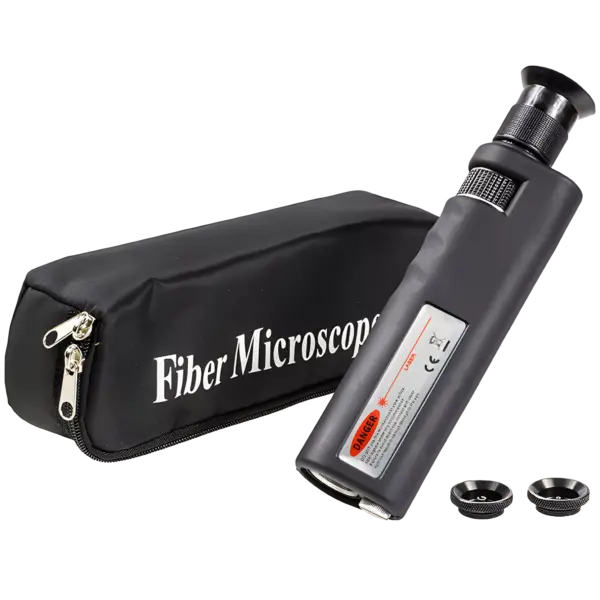

400x Fiber Optic Microscope
Discover exceptional clarity and precision with the 400x Fiber Microscope, designed for both high-quality performance and cost-efficiency. Perfect for inspecting fiber optic connectors, this versatile microscope offers 200x or 400x magnification options, ensuring you get the detailed view you need. Its advanced white LED light provides coaxial illumination, which enhances visibility by directing light directly at the connector end-face for optimal clarity.
+2.5mm universal adaptor, 1pc; 1.25mm universal adaptor, 1pc
Key Features:
- Magnification Options: Choose between 200x or 400x magnification for detailed inspections.
- Illumination: Equipped with a white LED light that delivers coaxial illumination, enhancing the visibility of connector end-faces.
- Power Supply: Operates on three “AAA” batteries, offering over 40 hours of use before needing a replacement.
- Controls: Features a momentary on/off switch for the light source and a fine focus control wheel for precise adjustments.
- Adapter Interface: Comes with a universal 2.5mm adapter compatible with SC, ST, and FC connectors. Additional adapters available for 1.25mm LC and MU connectors.
Optional Adapters:
- 2.5mm APC Universal Adapter: Compatible with SC/APC, FC/APC, and ST/APC connectors.
- 1.25mm LC/APC Connector Adapter: For LC/APC connections.
Design and Dimensions:
Compact Size: Measures 8.76 inches in length and 2.16 inches in height, making it portable and easy to handle.
The HW-400XA fiber optic microscope’s LED light is precisely aligned with the optical path, ensuring that light hits the ferrule end-face perpendicularly. This technique results in superior resolution and exceptional detail, making it ideal for detecting scratches, contamination, and other imperfections.
Upgrade your fiber optic inspection toolkit with the 400x Fiber Microscope, a reliable and efficient solution for achieving the highest levels of accuracy and detail.
