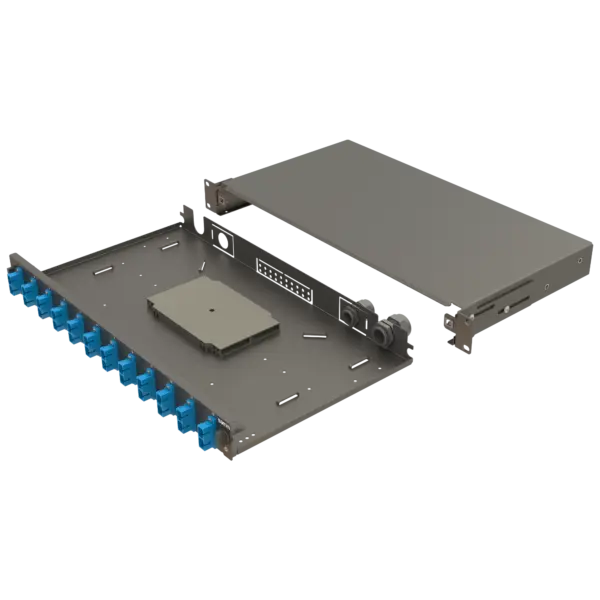

Bright Series | Mechanical Sliding | 12 SC Duplex | FP02 | 24 Fiber

Fixed-Type Bright Series Mechanical-Sliding FP02 Patch Panel Systems are designed for termination of up to 24 optical fibers according to the SC adapter. These panels can be opened and closed on a plastic rail mechanism.
These panels are used in telecom rooms, main distribution rooms and system rooms to terminate, distribute and manage fiber optic infrastructure in many different applications.

Properties

• Different cable entry options
• Robust and installer-friendly design – providing reduced installation and operating costs
• Different rear cable entry options with PG16 and PG13.5 gland holes
• Screwable desing for adapters on front plates
• Removable shelf design for installation easiness
• Powder-coated RAL 9000 (Black)
• Operating temperature: -20°C / +80°C

Product Content

• 1 pc – FP02 Panel
• 1 pc – PG16 Cable Gland
• 1 pc – PG13.5 Cable Gland
• 1 pc – Rack Mounting Set
• 4 pc – Tire Wrap
• 6 pc – Bunny Clips
• 1 pc – BS-SPLKIT2-24F-1T-BLK
• 12 pc – SC Duplex Adapters pre-assembled with screws
• 24 pc – SC Pigtail (Un-assembled)
