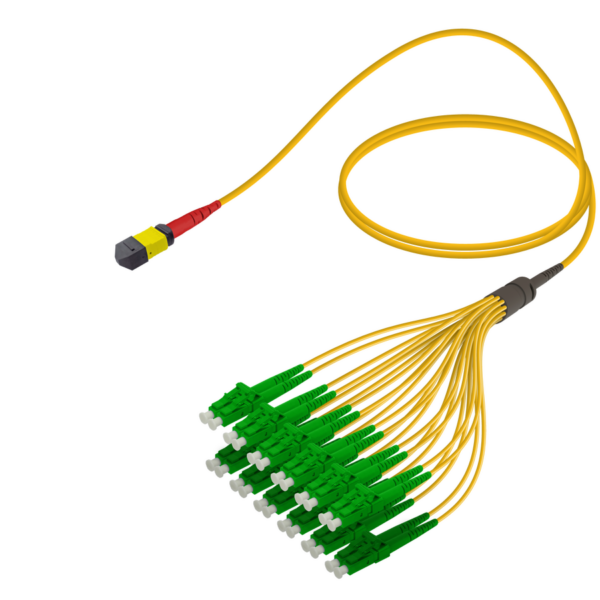

Female MTP Elite to LC/APC Fanout | Base-24 | Single Mode G657.A2 | 3.0/1.8mm
Features
This MTP to LC fanout assembly has one Female Base-24 MTP connector on one side and 12 LC/APC Duplex connectors on the other, and they are connected by 24 single-mode 1.8mm A2 fiber cords that have 24 fibers with 9µm core diameter and 125µm cladding diameter, and they are bonded within a 3.0mm main cord.
LC means “Lucent Connector” and it has 1.25mm diameter ceramic ferrule. The APC ferrule means it is polished in an 8° angle for a high precision angled physical contact. The Elite MTP connector is a high performance version of the MPO (Multi-fiber Push On) connector and it is designed for better mechanical and optical performance. MTP connectors can terminate 8, 12 or 24 fibers in a single connector, and provide a great ‘space advantage’ especially in high density data centers. MTP Male connectors have two alignment pins; and MTP Female connectors have two pin slots in response.
Features
- Lower Insertion Loss & Higher Performance
- Complied to ANSI/TIA-568-C.3, IEEE 802.3ba and adheres to ANSI/TIA-942
- Low IL and stable signal transmission ensuring your network safety
- High-quality MTP connectors and guaranteed by 3D interferometer
- 100% factory tested
Applications
- QSFP to SFP+ Connection
- QSFP+ to SFP+ Connection
- PSM4 to SFP+ Connection
- 40GE to 10GE Interconnection
- 400G to 100G Interconnection
Specifications
| Insertion Loss (IEC 61300-3-4-Method-B) |
MTP≤0,35dB (avg: 0,1dB); LC≤0,3dB |
| Return Loss (IEC 61300-3-6-Method-B) |
MTP: ≥60dB; LC: UPC≥50dB APC≥60dB |
| Durability |
>100 mating cycles |
| Flammability |
UL94 V-0 |
| Operating Temperature |
-10?C to +70?C |
| Cable Diameter |
3.0 mm |
| MTP Connector Compliance |
IEC 61754-7, TIA 604-5, RoHS |
| LC Connector Compliance |
IEC 61754-20, TIA 604-10-A, RoHS |
Fiber Structure for Transceiver Modules
| TRANSCEIVER |
FORM FACTOR |
CONNECTOR |
FIBER COUNT |
FIBER TYPE |
| 100G |
CFP/CFP2/CPAK |
SR10 / XSR10 |
24F MTP (MPO) |
20 |
OM3/OM4 |
| SR4 |
CPAK |
12F MTP (MPO) |
12 |
OM3/OM4 |
| SR4 / XSR4 |
QSFP28 |
12F MTP (MPO) |
8 |
OM3/OM4 |
| PSM4 |
QSFP28 |
12F MTP (MPO) |
8 |
OS2 |
| CWDM4 |
QSFP28 |
LC |
2 |
OS2 |
| LRL4 |
CFP2/CPAK/QSFP28 |
LC |
2 |
OS2 |
| SWDM4 |
QSFP28 |
LC |
2 |
OM3/OM4 |
| SR-BD |
QSFP28 |
LC |
2 |
OM3/OM4 |
| 40G |
SR4 |
QSFP+ |
12F MTP (MPO) |
8 |
OM3/OM4 |
| 40G-C/X/ESR4 |
QSFP+ |
12F MTP (MPO) |
8 |
OM3/OM4 |
| BIDI |
QSFP+ |
LC |
2 |
OM3/OM4 |
| LX4 |
QSFP+ |
LC |
2 |
OM3/OM4 |
| UNIV |
QSFP+ |
LC |
2 |
OM3/OM4, OS2 |
| LR4 / LRL4 / IR4 |
QSFP+ |
LC |
2 |
OS2 |
| SWDM4 |
QSFP+ |
LC |
2 |
OM3/OM4 |
| PLRL4 / PLR4 |
QSFP+ |
12F MTP (MPO) |
8 |
OS2 |
| 4x10G |
IR / LR |
QSFP+ |
12F MTP (MPO) |
8 |
OS2 |
| 10x10G |
LR |
CPAK |
24F MTP (MPO) |
20 |
OS2 |
| 25G |
SR |
SFP28 |
LC |
2 |
OM3/OM4 |
| LR |
SFP28 |
LC |
2 |
OM3/OM4 |
| 10G |
SR |
SFP+ |
LC |
2 |
OM3/OM4 |
| LR |
SFP+ |
LC |
2 |
OM3/OM4 |
| 1G |
SX |
SFP |
LC |
2 |
OM3/OM4 |
| LX |
SFP |
LC |
2 |
OS2 |
