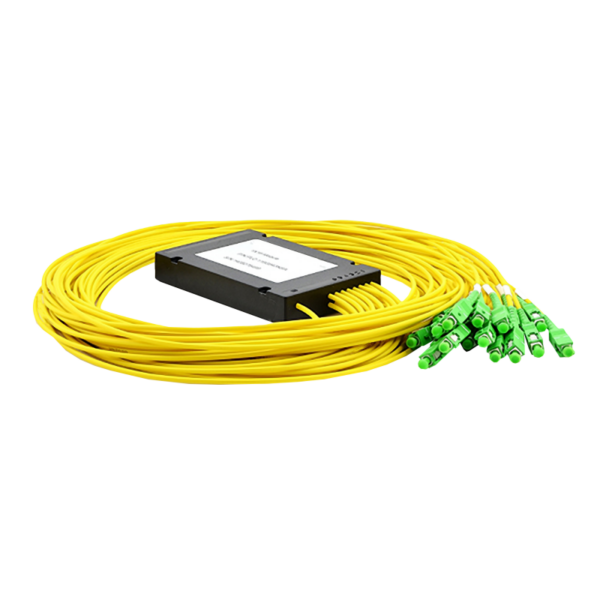

Fiber Optic PLC Box Type Splitter
Features
The box shaped optical passive splitter that is designed for fiber optic distribution boxes and closures, uses PLC (Planar Light-wave Circuit) to distribute the optical power 1 input to desired number of ports with a compact body. Compact optical splitter using PLC (Planar Light-wave Circuit) and suitable for installation in optical equipment. This splitter is the best choice for constructing Passive Optical Networks. Generic specifications 1xn standard and premium grade Without connector loss.
Features
- Compact packaging size
- Efficient for usage in optical equipment
- High reliability
- Low Insertion Loss.
- Suitable for Installation In a splicing closure.
- High reliability
- Can be mounted on shelves or cabinets.
| Parameter | Unit | 1 x 2 | 1 x 4 | 1 x 8 | 1 x 16 | 1 x 32 | 1 x 64 |
| Operating wavelength | nm | 1260 – 1650 | |||||
| Insertion loss standard grade | dB | ≤ 4.0 | ≤ 7.3 | ≤ 10.5 | ≤ 13.8 | ≤ 17.0 | ≤ 20.6 |
| Uniformity standard grade | dB | ≤ 0.6 | ≤ 0.6 | ≤ 0.8 | ≤ 1.2 | ≤ 1.5 | ≤ 1.8 |
| PDL standard grade | dB | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 |
| Insertion loss premium grade | dB | ≤ 3.8 | ≤ 7.0 | ≤ 10.2 | ≤ 13.5 | ≤ 16.8 | ≤ 20.3 |
| Uniformity premium grade | dB | ≤ 0.5 | ≤ 0.5 | ≤ 0.8 | ≤ 1.2 | ≤ 1.2 | ≤ 1.8 |
| PDL premium grade | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.3 |
| Return loss | dB | ≥ 55 | |||||
| Directivity | dB | ≥ 55 | |||||
| Operating temperature | °C | –40 to +85 | |||||
| Package dimension (L x W x H) | mm | 40 x 4 x 4 | 47 x 7 x 4 | 58 x 12 x 4 | |||
