LC/UPC-LC/UPC | 24 Fibers Universal Fanout | Multi Mode G651.OM3 | 4.8/1.8mm
Features

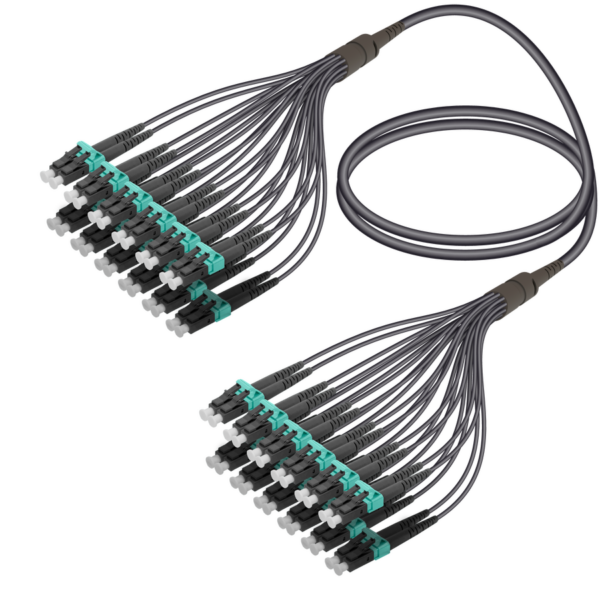

This universal (indoor/outdoor) fanout assembly has 24 aqua LC/UPC connectors on each side, and they are connected by 24 multi-mode OM3 1.8mm fiber cords that have 24 fibers with 50µm core diameter and 125µm cladding diameter, and they are bonded within a 4.8mm main cord. LC means “Lucent Connector” and it has 1.25mm diameter ceramic ferrule. The connector ferrule on both sides is UPC, which means its surface is ultra polished for ultra physical contact.
Specifications
- Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB
- Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC)
- Durability: ≥ 1000 mating cycles
- Flammability: UL94 V-0
- Operating Temperature: -40°C to +85°C
- Connector End Face Geometry: IEC 61755-3
- LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS
- SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS
- FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS
- ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS
- E2000 Connector Compliance: IEC 61754 – 15, TIA 604 – 16, RoHS
| Packing Weight (Kg) |
|---|
| 0.45 |
