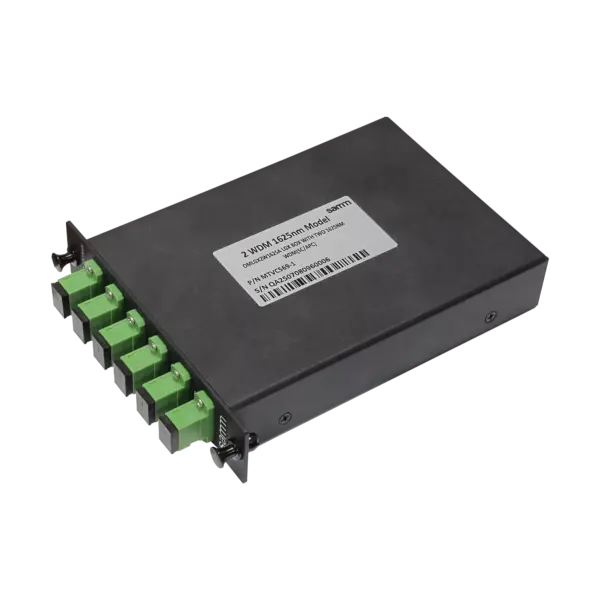

LGX Box with Two 1625 nm WDM Modules (SC/APC)
Features
The 1625 nm WDM Module (SC/APC) is a passive optical component that adds or drops the 1625 nm monitoring wavelength while allowing standard data wavelengths (1310/1490/1550 nm) to pass through unaffected. Housed in a standard LGX module, the bypass unit maintains excellent optical performance with low insertion loss and high isolation, ensuring reliable monitoring access in GPON, XGS-PON, RFoG, and other FTTx networks.
Key Features
- Passes standard transmission wavelengths (1310/1490/1550 nm)
- Adds or drops 1625 nm OTDR monitoring signals
- Enables real-time, non-intrusive fiber monitoring
- High isolation between 1625 nm and live traffic wavelengths
- Fully passive – no power required
- Housed in a standard LGX module, compatible with 19″ racks
Applications
- In-service OTDR fiber monitoring
- Central office or remote cabinet installations
- Redundant or bidirectional fiber monitoring paths
OMLGX2W162SA
