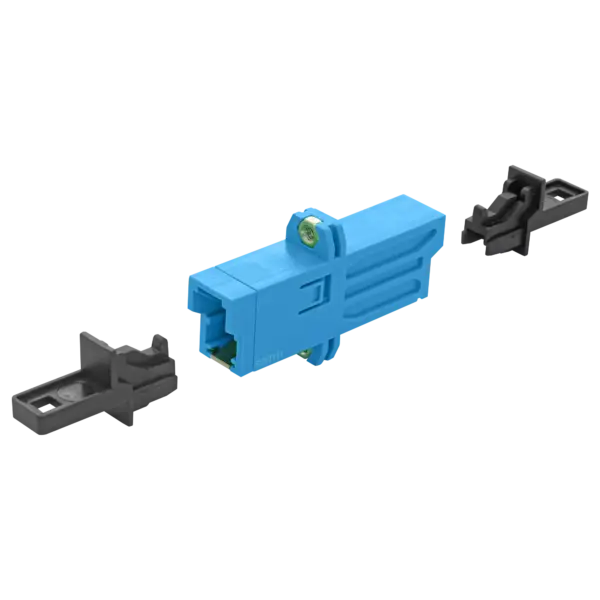

LSH (E2000) Simplex Adapter | w/ Flange
Features
The LSH (E2000) Simplex flanged adapters are used to patch connect two E2000 connectors to each other. They come is 5 color options to indicate the fiber type as the following: Single Mode adapters come in Blue for UPC or Green for APC and Multi-mode adapters come in Beige for OM1/OM2, Aqua for OM3 and Violet for OM4.
Properties
| Insertion Loss (Max./Typical) | 0.2 / 0.1 dB |
| Repeatability ΔIL/mating | ± 0.1 dB |
| Operational Temperature | -25 ≤ T ≤ +70 °C |
| Storage Temperature | -40 ≤ T ≤ +80 °C |
| Mating Cycles | 1000 matings |
| Allignment Sleeve | Ceramic |
| Material | LSZH |
| Flammability | UL94-V0 |
| RoHS | Compliant |
