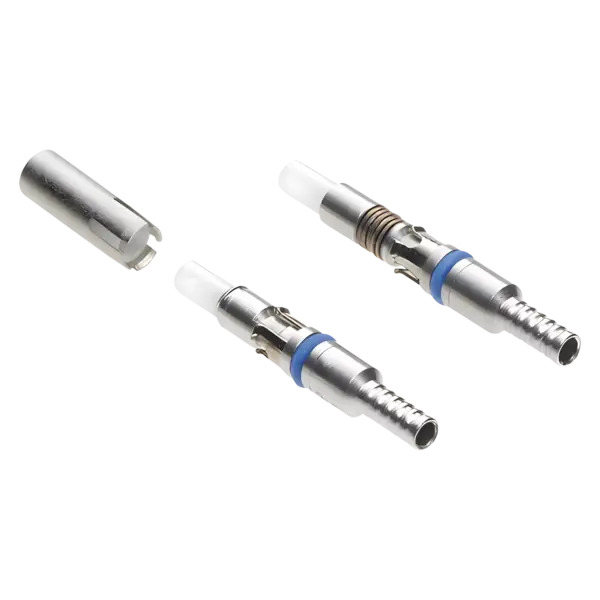

M29504/14 and /15 Military Fiber Optic Termini
MIL-PRF-29504/14 and /15 fiber optic termini are designed for outstanding optical performance in extreme environments.
M29504/14 & /15 termini are qualified to MIL-PRF-29504B specifications. This series of fiber optic termini provide superior optical and mechanical performance and are compatible with M28876 and comparable military-style connectors. MIL-PRF-29504B QPL listed.
The M29504/14 and /15 termini design features pre-radius 2.00mm zirconia ultra high-tolerance ferrules, an enhanced cable retention using serrated crimp areas and removable captivated split alignment sleeves.
|
Performance Specification – M29504/14 PINS and M29505/15 SOCKETS |
|
|
Metric |
Parameters |
|
Operating Temperature |
-65°C to +150°C (dependent on epoxy and cable) |
|
Thermal Cycling |
-54°C to +65°C |
|
Thermal Shock |
-55°C to +85°C |
|
Temperature Life |
+110°C for 240 hours |
|
Vibration |
68 G random |
|
Physical Shock |
500 G |
|
Mating Durability |
500+ cycles |
|
Salt Spray |
500 hours |
|
Pressure Sealing |
32psi, (2,000 psi with wiper seal option) |
|
Terminus Mating Force |
5 lbs. [22.2 N] nominal |
|
Terminus Retention Force |
22 lbs. [97.9 N] |
|
Cable Retention Force |
25 lbs. [111.2 N] (dependent on cable construction) |
|
Weight |
0.7 grams max |
|
Standard Materials and Finishes |
||
|
Description |
Material |
Finish |
|
Terminus Bod |
Stainless Steel |
Passivated |
|
Alignment Sleeve |
Zirconia |
None |
|
Alignment Sleeve Hood |
Beryllium Free |
Nickel Plated |
|
Ferrule (bushing) |
Zirconia |
None |
|
Retaining Clip |
Beryllium Free |
None |
|
Belleville Springs |
Beryllium Free |
None |
|
-Ring Seal |
Fluorosilicone |
None |
|
Optical Performance |
||
|
Fiber Size |
Insertion Loss (Max.) |
Insertion Loss (Typ.) |
|
9/125 |
*-0.75 dB |
*-0.35 dB |
|
50/125 |
*-0.75 dB |
*-0.35 dB |
|
62.5/125 |
*-0.75 dB |
*-0.35 dB |
|
Back Reflection (BR) – Single-Mode |
|
|
Fiber Type |
Back Reflection (dB) |
|
Single-mode |
≤ -40 dB (PC Finish) |
|
Single-mode |
≤ -50 dB (UPC Finish) |
