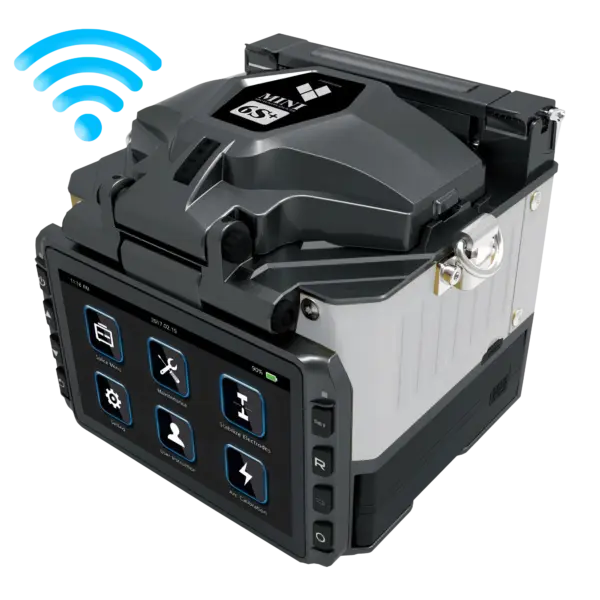

Mini 6S+ Wi-Fi Fusion Splicer

Mini 6S+ Wi-Fi Fusion Splicer

₺1,00

SKU: MTVC624 Category:

Mini 6S+ Wi-Fi Fusion Splicer

Features

Mini 6S+ W fusion splicer with WiFi connection and AOCAT (Automatic Optical Core Analysis & Tracking) system from FiberFox. The Mini 6S+ has and automatic alignment and fusion process and it has an average 0.02 dB splicing loss and 6 seconds fast performance. It can connect and send PDF reports to phones using a WiFi connection and the Android or the iOS application. Mini 6S+ W can heat shrink a splice protector sleeve in 10 seconds from room temperature and in 6 seconds with continuous heating, and it also uses two batteries that can last for 600 cycles of splicing and sleeve heating. Furthermore, FiberFox Mini 6S+ W has LED lighting, a tempered glass touch screen and it is compatible with SOC (splice on connectors). All FiberFox fusion splicer dust-proof, anti-shock and waterproof.

FiberFox Mini 6S+ W Fusion Splicer Specs

Splicing Method
Core Alignment AOCAT(Automatic Optical Core Analysis & Tracking) System
Average Loss
SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB)
Return Loss
>>60dB
Splice Time
6s average SM
Electrodve Lifespan
>5,500 arcs
Applicable Fiber
SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655),
IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
Cleaved Length
Coating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = 16mm minimum
Coating Diameter
100-3,000um
Cladding Diameter
80-150um
Heating Programs
Factory installed mode : 10, User installable mode : 32
Heating Time
10s  (* 6 sec with continuous heating mode)
Protection Sleeve
40mm, 60mm, SOC Connector
Data Output
Mini USB – Wi-Fi – Phone App
Splice Programs
Factory installed mode: 38, User installable mode: 90
Splice Memory
Up to 10,000 records and 2,000 splice images
Battery
Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>
Power Supply
AC 100-240V input or DC 9~14V
Monitor
720P Color 4.3’’ LCD monitor, with Full Touch Screen (Tempered Glass)
Cameras
2 CCD camera system
magnification
XY style : 160 power, X/Y : 320 power
Fiber Display
X/Y or XY, single X.Y
Weight
3.09 lbs (without battery)
Size
4.8 x 4.88 x 5.4 (in)
Wind Protection
The max wind speed 15m/s
Operating Environment
Elevation 0-5,000 meters, -15~60˚C, 0~95% relative humidity
Storage Condition
Temperature -40 to 176˚F, 0~95% relative humidity, battery -4~86˚F
Pull Test
1.96~2.25N (standard)

FiberFox Mini 6S+ W Package Contents

  1. MINI 6S+ Wi-Fi Fusion Splicer
  2. Cleaver Soft-case
  3. MINI 50GB+ Cleaver
  4. Power Cord
  5. USB Cable
  6. AC Adapter
  7. Car Cigar Cable
  8. Cooling Tray
  9. Spare Electrode
  10. 2 Battery Packs
  11. Shoulder Strap
  12. User Manual CD
  13. Hand Carrying Case

Fiberfox Mini 6S+ Wi-Fi Fusion Spliucer Package Contents
