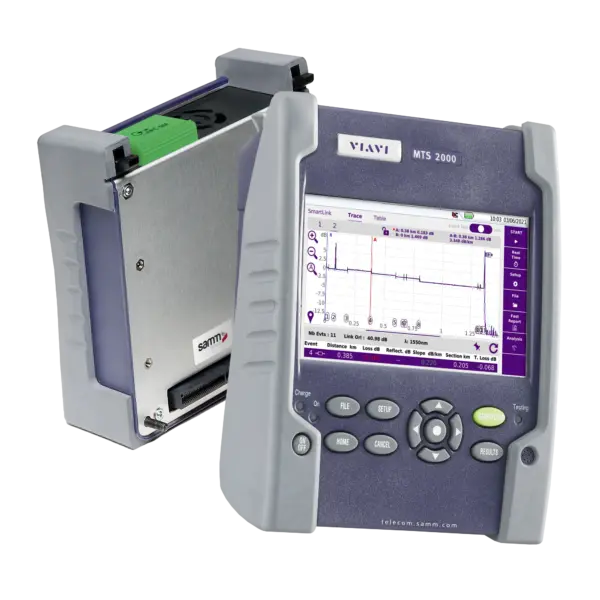

MTS-2000 + DWDM OTDR
Features
The VIAVI MTS-2000 with C-band DWDM OTDR module gives cable, wireless, and telco operators the ability to characterize and diagnose DWDM and hybrid CWDM/DWDM networks completely from end to end. The optical performance of the DWDM OTDR module, along with the full complement of T-BERD/MTS, CellAdvisor 5G, and OneAdvisor-800 platform testing tools, ensures that thorough testing is carried out correctly the first time. Technicians need comprehensive and portable xWDM test tools as xWDM adoption in access networks for broadband services continues to increase.
Standard testing features include
- Auto-setting of the acquisition parameters
- Summary results table with pass/fail analysis per the international standards
- Comprehensive event diagnosis
- FastReport onboard report generation
Key Benefits
- Characterize fiber links with exact DWDM wavelengths
- Troubleshoot live networks with in-service testing capability
- Verify end-to-end continuity through MUX/DEMUX and ROADMs using the continuous wave source function
- Automatically identify and test DWDM port channel/link with patented Wavescan
- Avoid accidental transceiver damage with SFP Protect
Key Features
- C-Band (1528nm to 1568nm) tunable DWDM OTDR module at ITU-T G.694.1 wavelengths (CH12 to CH62)
- Integrated CW light source with modulation capability
- Instantaneous traffic detection
- Automatically identify Mux and Demux components with SmartLink Mapper
Applications
- Metro & access rings, business to business, advanced C-RAN fronthauls & next gen FTTH networks
- Qualification of fronthaul access networks
- Testing new DWDM wavelength routes without disrupting traffic on active channels
- Pinpointing faults and their exact locations while in service
VIAVI MTS-2000 Details
- 5-inch touch screen
- Charge indicator
- On indicator
- File menu
- Setup menu
- Start/Stop
- Testing indicator
- On/Off
- Home page
- Cancel
- Direction and validation keys
- Results page
- Loudspeaker
- Headset jack
- AC/DC input
- Slave mini USB port
- RJ45 connector
- Master USB ports (2)
- Power meter port
- VFL or talk set port
- WiFi and Bluetooth options
- Stylus for touch screen
| Multimode | Singlemode+Multimode | Singlemode | |||
|---|---|---|---|---|---|
| Type | MM OTDR | QUAD OTDR | LM OTDR | MA OTDR | MP OTDR |
| Wavelengths | 850/1300 | 850/1300/1310/1550 | 1310/1550/1625/1650 | 1310/1550/1625/1650 | 1310/1490/1550/1625/1650 nm |
| Dyn. range | 27/25dB | 27/25/37/35dB | 34/32/32/30dB | 37/35/35/33dB | 42/40/40/40/40dB |
| EDZ | 0.8 m | 08 m MM / 0.9 m SM | 1 m | 0.9 m | 0.8 m |
| ADZ | 4 m | 4 m | 4 m | 4 m | 4 m |
| Applications | – MM networks (Datacom/IT/Private Enterprises) | – MM networks – Short/Medium Range SM Distances |
– Short Distances – Test before or after the splitter or up to 1/16 splitter on PON Networks |
– Short/Medium Range Distances – Test through up to 1/32 splitter on PON Networks |
– Medium/Long Range Distances – Test through up to 1/128 splitter on PON Networks |
