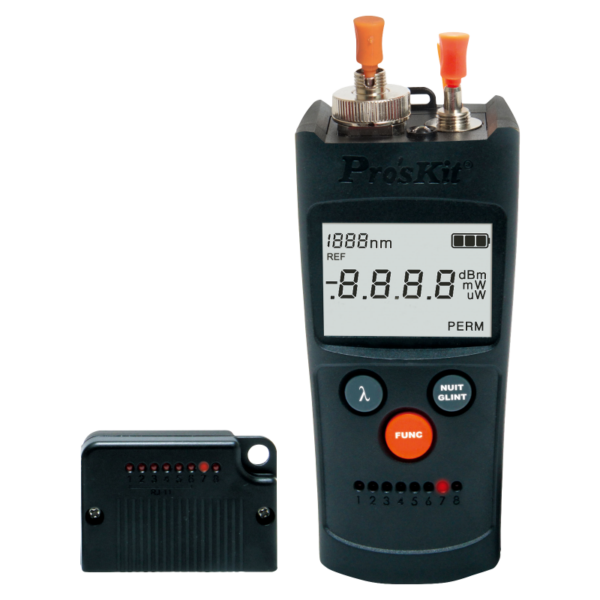

Multi-Functional Optical Power Meter | 4 in 1
Features
MT-7602 test device can be used as an optical power meter, fiber optic visual fault locator, fiber cable tester and a flashlight.
Functions
Optical Power Meter
- Wide range of power measurement from 850nm to 1625nm
- Multiple mode:850nm/1300nm/
- Single mode:1310nm/1490nm/1550nm/1625nm
- Power measurements in dBm,mW and uM
- Supports 2.5mm universal connectors (for ST/SC/FC)
visual fault locator
- Easy to locate the breakpoint and bad connections in fiber optic cables
- Supports 2.5mm universal connectors (for ST/SC/FC)
- Both continuous and flashing modes available
Fiber Cable Tester
- Pin to pin cable map indicator (1~8 LEDs)
- Tests two types of connectors(RJ-11&RJ-45)
- The maximum length measurement: 600M
LED Flash Light
- Convenient for working in a dark environment
- Features 2 modes for long illumination and SOS signal
| Optical Power Meter | Detector Type | InGaAs |
| Optical Connector | ST/SC/FC & 2.5mm Universal | |
| Calibrated Wavelengths |
|
|
| Measurement Range | +6 ~ -70 dBm | |
| Frequency Identification | 270Hz, 1KHz, 2KHz | |
| Ref. | Yes | |
| Accuracy | ± 0.2 dB | |
| Power Measurement Linearity | ±0.1 dB | |
| Display Resolution | ±0.01 dB | |
| Power Display Units | dBm、mW、μW | |
| Visual Fault Locator | Output power | ＜1mW |
| Range | 3~5 kM @SM | |
| Connector | ST/SC/FC & 2.5mm Universal | |
| Laser safety rating | Class 2 | |
| Wavelength | 650nm±20nm | |
| Output modes | Continuous (CW) 、2 Hz pulsed | |
| Reverse battery protection | Yes | |
| Lan Cable Tester | Connector | RJ45 & RJ11 shared |
| Cable | UTP LAN cable(8P8C)、Telecom cable(6P2C/6P4C/6P6C) | |
| Measuring length Max. | 600 meter | |
| Automatic Power Off | 10 min.(Can be cancelled) | |
| Low Battery Warning | Low battery energy | |
| Battery Life | 100 hours (only OPM) | |
| Power source | AA/LR6 1.5V×2 pcs | |
| Size | 125×52×34 mm | |
