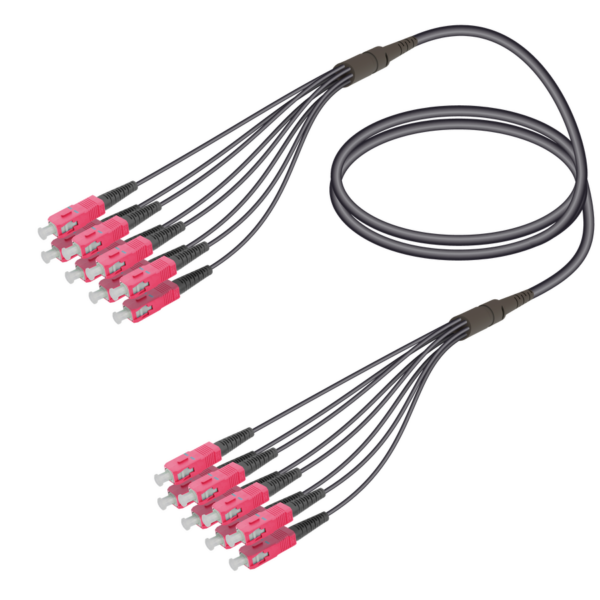

SC/UPC-SC/UPC | 8 Fibers Universal Fanout | Multi Mode G651.OM4 | 4.8/1.8mm
Features
This universal (indoor/outdoor) fanout assembly has 8 violet SC/UPC connectors on each side, and they are connected by 8 multi-mode OM4 1.8mm fiber cords that have 8 fibers with 50µm core diameter and 125µm cladding diameter, and they are bonded within a 4.8mm main cord. SC means “Square Connector” and it has 2.5mm diameter ceramic ferrule. The connector ferrule on both sides is UPC, which means its surface is ultra polished for ultra physical contact.
Specifications
- Insertion Loss (IEC 61300-3-4-Method-B): ≤ 0.30 dB
- Return Loss (IEC 61300-3-6-Method-B): ≥ 50 dB (UPC), ≥ 60 dB (APC)
- Durability: ≥ 1000 mating cycles
- Flammability: UL94 V-0
- Operating Temperature: -40°C to +85°C
- Connector End Face Geometry: IEC 61755-3
- LC Connector Compliance: IEC 61754-20, TIA 604-10-A, RoHS
- SC Connector Compliance: IEC 61754-4, TIA 604-3, RoHS
- FC Connector Compliance: IEC 61754-13, TIA 604-4-A, RoHS
- ST Connector Compliance: IEC 61754-2, TIA 604-2, RoHS
- E2000 Connector Compliance: IEC 61754 – 15, TIA 604 – 16, RoHS
